Fine Civil Engineering Software has been developing and supplying structural and geotechnical engineering software since 1989. Currently Fine software serves more than 5000 customers in over 128 countries. The company's geotechnical product is GEO5 which is an abbreviation for Geotechnical Engineering Software.

GEO5 software solves a wide range of geotechnical tasks. In addition to solving common geotechnical engineering tasks, the GEO5 suite includes several highly sophisticated applications for the analysis of tunnels, building damage due to tunnelling, stability of rock slopes and digital terrain modelling. Programs in the GEO5 suite are based on analytical and/or finite element methods.


Return on Investment

GEO5 software it is a powerful, versatile and very competitively priced suite of geotechnical programs. Programs can be purchased individually or in bulk, whilst additional programs may be purchased as and when required. The retail price of programs, excluding volume and Sigma-X discounts, can be seen on our Purchase page. Major and minor releases of the software are issued on an annually basis in November and May, respectively.



GEO5 has over 5000 customers in 128 countries

Our UK clients include


GEO5 software is a powerful and versatile geotechnical engineering analysis and design suite of programs based on traditional analytical and the finite element methods. All programs are developed from the same core user interface thus ensuring both intuitive and easy to use software.


Geotechnical Engineering Solutions

GEO5 solves commonplace geotechnical tasks such as verification of foundations, walls and the stability of slopes. It also performs specialised tasks such as the analysis of tunnels, building damage due to tunnelling and rock stability.

As each GEO5 program solves a specific geotechnical task engineers need only purchase the programs from the GEO5 suite which match their requirements.


User-Friendly Interface

GEO5 is composed of individual programs which share a common core user interface. This makes all GEO5 programs intuitive and easy to use hence increasing efficiency and productivity.


Program Compatability

GEO5 programs allow seamless transfer of data between individual programs. For instance use GEO5 Stratigraphy to create geological models of your site then select cross-sections from the program and export them to GEO5 Slope Stability for immediate analysis and design.


Tradational Analytical and Finite Element Methods

Traditional analytical methods provide effective and rapid structural analyses, designs and/or verifications. If there is a requirement for greater detail it is possible to transfer analytical models to the GEO5 FEM programs for a more rigorous analysis.


Design and Verification to Codes of Practise

Inaddition to the British and EuroCodes GEO5 software designs and verifies to many other codes of practise. GEO5 uses a unique system of implementing codes and partial factors. GEO5 has a database of codes, however it is possible to create your own settings particular to the codes you are using.


Results Presentation

GEO5 programs generate text and graphical output that can be easily edited as required; i.e. add company logo, insert images. Output can be printed directly from any GEO5 program, saved as a PDF or exported to an external text editor such as Microsoft Word.


Training Materials

GEO5 software is easy to use and does not require any special training. Nevertheless, we provide training materials, which include engineering manuals, tutorials, help and user guides.

GEO5 contains several programs for analysis, design and verification of soil and rock slopes, dams, newly built embankments and retaining wall stability.


GEO5 Program Suite



Slope Stability


Rock Stability


MSE Wall


Nailed Slope


FEM


FEM - Water Flow


Anti Slide Pile


Redi-Rock Wall


Sheeting Design


Sheeting Check


Shaft


Cantilever Wall


Nailed Slope


Gravity Wall


Gabion


Masonry Wall


Prefab Wall


Earth Pressures


Abutment


Spread Footing


Slab (Plate)


Beam


Spread Footing CPT


Pile


Pile CPT


Pile Group


Settlement


FEM - Consolidation


Spread-Footing


Ground Loss


FEM - Tunnel


Terrain


Stratigraphy


Stratigraphy - Site Investigation


FEM - Tunnel

GEO5 software can be purchased directly from Sigma-X. The sales process typically involves Sigma-X discussing the technical requirement with the purchaser over the telephone and/or by email.



All purchases are initiated by telephone or email to Sigma-X. We issue a pro forma invoice and then upon approval an invoice. As we do not give credit we issue a receipt and dispatch the software upon receipt of payment.

Customers may purchase GEO5 in Sterling or Euro using bacs, online banking, PayPal or by debit/credit card. Sigma-X banking details are written on our invoices. All sales outside of the Ireland are VAT free if the purchaser provides a VAT number.



A standalone licence can be used on one computer. A network license can be used by a defined number of users at the same time. Network licences cost 130% of standalone licences.

GEO5 licences are sold in perpetuity however we strongly recommend keeping licences maintenanced as major GEO5 upgrades are issued annually.



Maintenance is optional and is an addition cost to the software purchase price. It cost 15% of the current price of the licenced software and is charged annually. Maintenance entitles the customer to technical support, upgrades and updates of GEO5 software.

As GEO5 releases a major upgrade annually it is strongly recommended that customers keep their software maintained. Also to comply with quality management systems it is a standard requirement to keep software maintained. A single upgrade is 0% for maintained and 20% of the price of all purchased licences for non-maintained clients.



Volume Discounts

Purchases of 3 to 4 programs are discounted by 5%.

Purchases of 5 to 8 programs are discounted by 10%.

Purchases of 9 to 11 programs are discounted by 15%.

Purchases of over 11 programs are discounted by 20%.


Sigma-X Discount

Sigma-X value your business and generally discount the final price.

Sigma-X distribute and support GEO5 products throughout the UK and Ireland.

For sales or support enquires please find our contact details below:


By Telephone

UK: +44 (0)203 603 1442

Ireland: +353 (0)86 85 45 425

By Email

Sales: sales@sigma-x.net

Support: support@sigma-x.net


Price List

The prices listed are for the first local licence of GEO5 software. The price of the first network licence is 130% of the prices listed. Additional local and network licences are discounted.

Product Description Price
Slope Stability

Slope stability analysis.

€650
Sheeting Check

Excavation shoring design software (Non-linear elastic/plastic model).

€650
Sheeting Design Design of various shoring excavation and retaining wall types. €450
Cantilever Wall Cantilever retaining wall design. €450
Gravity Wall Massive gravity wall design software. €450

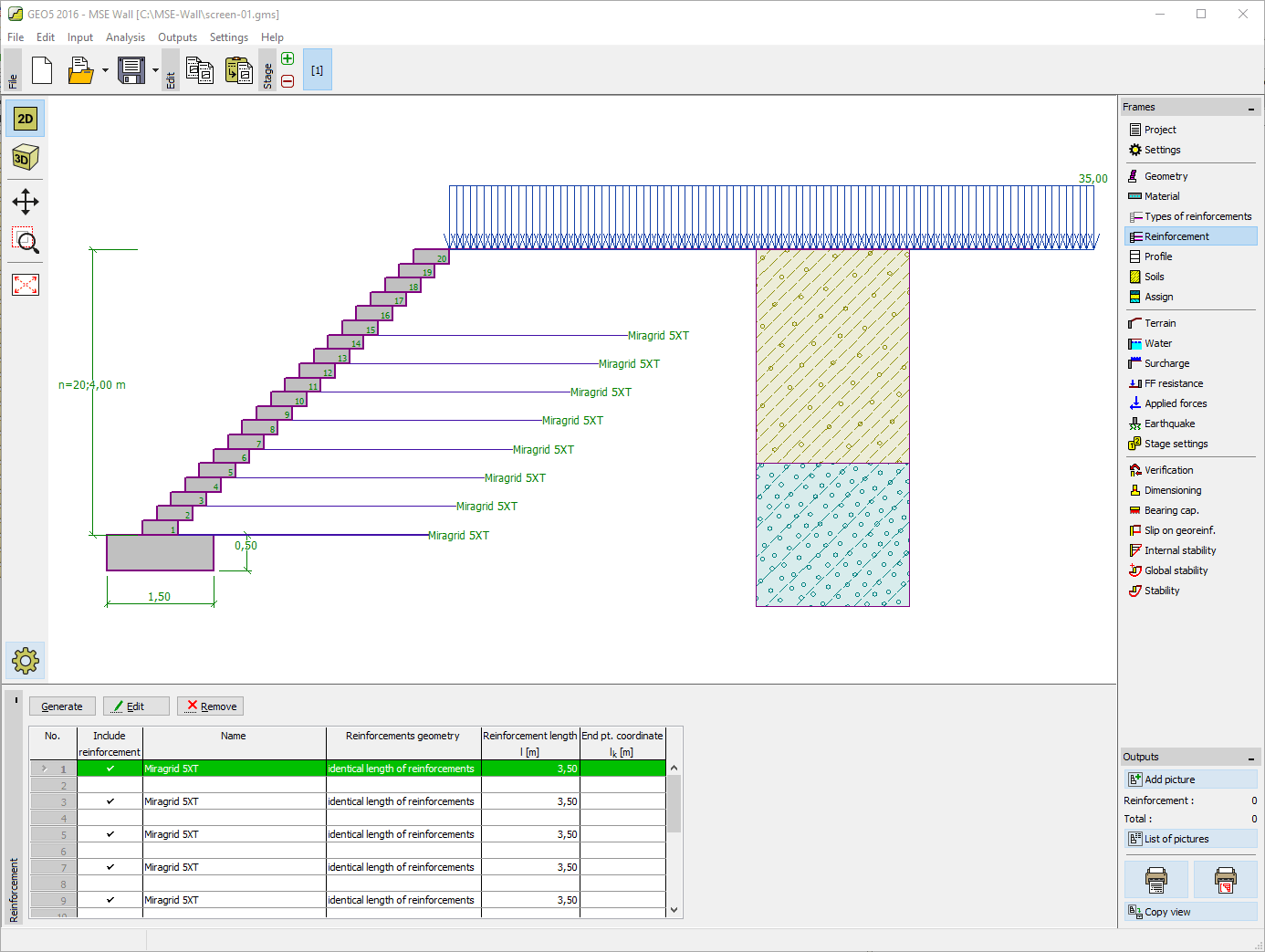

MSE Wall Mechanically stabilized earth wall design and analysis. €550
Gabion Design and verification of gabion retaining wall. €450
Masonry Wall Design and verification of reinforced masonry wall. €450
Prefab Wall Design and analysis of block walls. €450
Prefab Wall Design and analysis of block walls. €450
Nailed Slope Design of soil nail walls and slopes. €450
Anti-Slide Pile Verification of anti-slide pile (for stabilizing slopes). €650
Earth Pressures Earth pressures calculation. €450
Spread Footing Design of spread footings. €550
Pile Verification of a single pile. €550
Micropile Verification of a micropile. €450
Pile Group Analysis of group of piles (pile raft foundations with rigid pile cap). €700
Pile CPT Verification of pile or a pile group based on CPTs. €550
Beam Beam on elastic foundations. €450
Slab (Plate) Design of foundation mat and slab (FE). €1200
Settlement Terrain settlement caused by surcharge and change of GWT. €450
Ground Loss Settlement above tunnels and prediction of building damage. €1200
Abutment Design of bridge abutments and wing walls. €550
Terrain Digital terrain modeling (DTM) and excavation volumes. €1200

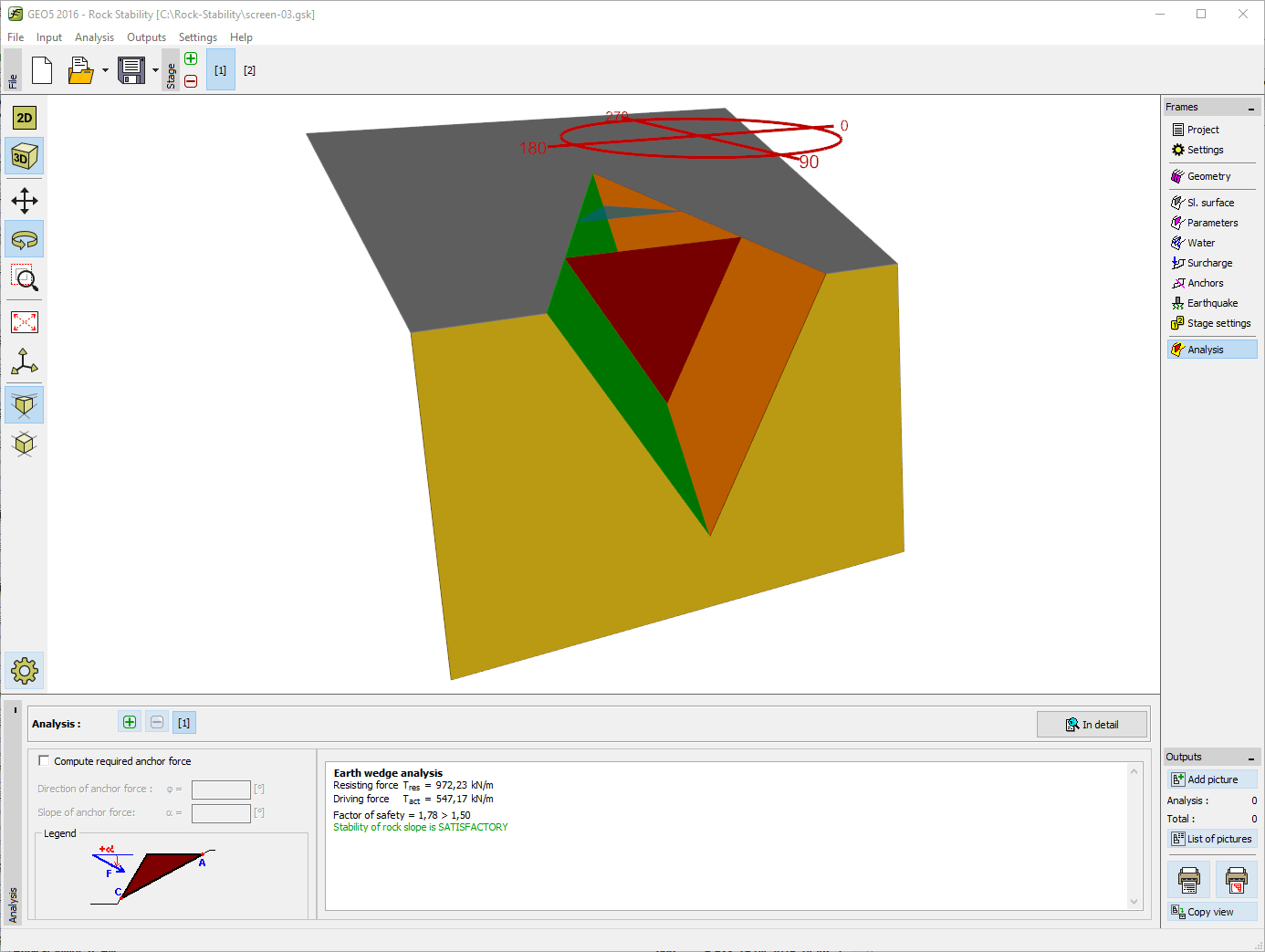

Rock Stability Rock slope stability design. €650
Shaft Circular shaft design software. €650
FEM Modelling of various geotechnical problems by FE analysis. €2350
FEM – Tunnel

Analysis of tunnels.

Requires the FEM program to run.

€2350
FEM – Water Flow

Groundwater seepage analysis.

Requires the FEM program to run.

€650
FEM – Consolidation

Time dependent settlement analysis.

Requires the FEM program to run.

€650
Additional Languages Additional output language (price per one program and language) - EN, ES, PT, SK, EL, PL, RO, CZ, HR, TU, CH, VI, FR, BU, RU, IT, DE. €100
Product Description Price
GEO5 Package Professional

All programs.

This represents a 43% discount.

€12000
GEO5 Package Basic

All programs excluding FEM, Ground Loss and Shaft.

This represents a 40% discount.

€8000
GEO5 Foundation Design

Spread Footing, Pile, Micropile, Pile Group, Pile CPT, Beam, Slab programs.

This represents a 19% discount.

€3600
GEO5 Excavation Analysis

Slope Stability, Sheeting Check & Design, Anti-Slide Pile, Earth Pressures programs (30% discount).

€2000
GEO5 Redi-Rock Wall Package

Design of Redi Rock gravity walls and MSE walls with PC blocks. Spread Footing, Settlement and Slope Stability.

€1800
Product Description Price
GEO5 Package Educational 10

All programs for educational purposes (network version – 10 seats).

A request form must be completed to avail of this package.

€1000
GEO5 Package Educational 50

All programs for educational purposes (network version – 50 seats).

A request form must be completed to avail of this package.

€1500
GEO5 Package Research

All programs for research purposes .

A request form must be completed to avail of this package.

€3500

The GEO5 evaluation version is availble to prospects who are interested in trialing the software. The evaluation version contains the full GEO5 suite of programs. It is not time limited however printing

A licence maybe requested by filling in your details below and submitting it. All eligable evaluators will be emailed a link to download the software together with a detailed Evaluation Installuation guide. When the trial is complete we will contact you by email to ask how you got on.


Evaluator Details








Evaluation Details

Evaluation duration is not time limited

Installation instructions on email

Evaluate all or any GEO5 program

Evaluation on local machine

Evaluation limits the number of soil strata

Evaluation cannot save models or print reports

GEO5 runs on Windows operating systems
